Sparcraft Bowsprit diameter 70
Bowsprit - Standard kit.
Tube diameter 70mm length 1600mm.
Max area for asymmetric spinnaker: 60m2.
Max surface for Gennaker : 37 (with use of briddles)
€731.96
Tax included

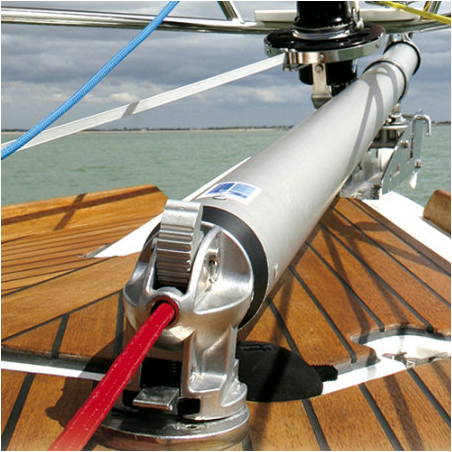

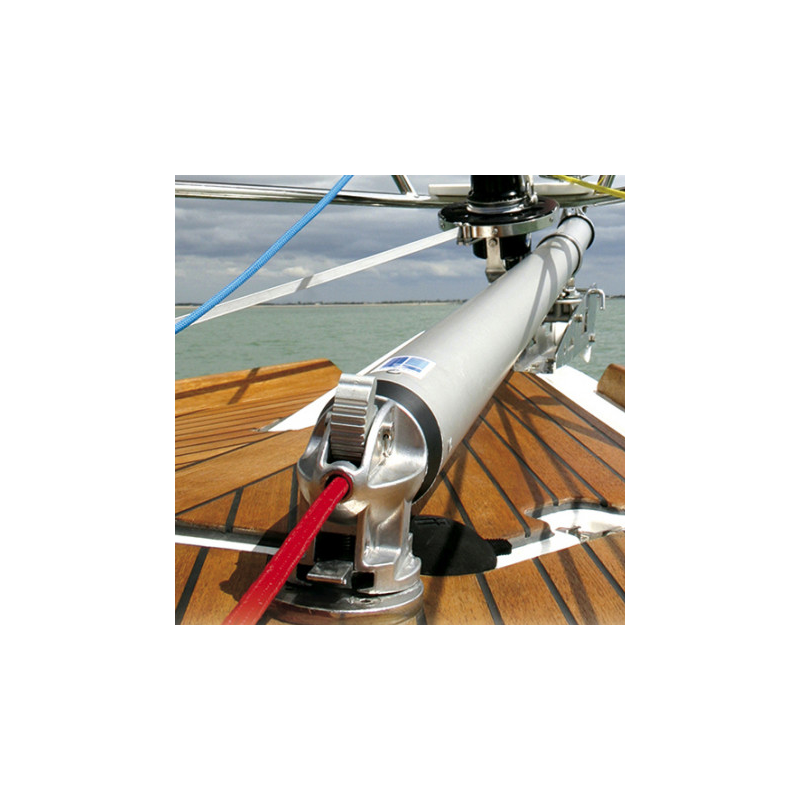

70mm diameter aluminium bowsprit.
It is designed to use a gennaker or an asymmetric spinnaker by clearing the balcony up to 80cm.
Asymmetric spinnaker:
Can be used for an asymmetric spinnaker up to 55/60m², as a classic asymmetric spinnaker or on a furler.
We recommend using the underbeard kit for a surface area of more than 45m².
The underbeard kit is available as an option. It prevents the bowsprit from riding up and bending. It consists of various ropes and components (see photo).
A tack ring kit is required to use a spinnaker furler.
Can be used with Facnor AFX1500 or AFX2500 models.
Gennaker:
This bowsprit is suitable for gennaker surfaces (or code 0) not exceeding 30/35m².
It must be fitted with the optional tack ring.
Can be used with Facnor FX1500 or FX2500 models.
An under-beard kit is recommended for a surface area greater than 25m².
Optional tack ring to attach the furler
3 total lengths available:
1600 mm : Fixed length
1600 to 2400 mm : Length to be specified at step 2 of the order in the "Leave a comment" dialogue box
2400 to 3200 mm : Length to be specified at step 2 of the order in the "Leave a comment" dialogue box
Download assembly instructions
Composition of the assembled butt kit :
One Ø70 mm aluminium tube
Two pre-assembled end caps:
Front end cap with under-beard clip
Rear end cap with retaining hook
A central fixing collar
Two complete work posts, with counter-plate and 4 M8 screws
One parking block, with round counter-plate and 1 M10 screw
Delivery within 8 to 15 days, subject to stock availability.
31000107000
